The following guide is intended to help developers who maintain or want to make changes to the Fiore.

Preparing for Local Development​

This section discusses the one-time setup in order to develop Fiore.

Installing Java & Maven (on Mac)​

brew update
brew install openjdk@17

At the end of the last command prompt, something like the below will show up:

For the system Java wrappers to find this JDK, symlink it with
  sudo ln -sfn ...openjdk@17/libexec/openjdk.jdk .../JavaVirtualMachines/openjdk-17.jdk

openjdk@17 is keg-only, which means it was not symlinked into /usr/local,
because this is an alternate version of another formula.

If you need to have openjdk@17 first in your PATH, run:
  echo 'export PATH=".../openjdk@17/bin:$PATH"' >> .../.bash_profile

For compilers to find openjdk@17 you may need to set:
  export CPPFLAGS="-I.../openjdk@17/include"

Make sure to execute the sudo ln -sfn, echo 'export PATH=..., and the export CPPFLAGS= commands above

tip

Fiore is built using maven. Maven uses a separate JDK version, which can be seen via mvn -v. If it's not JDK 17, we should have Maven point to our JDK 17 using JAVA_HOME:

$ /usr/libexec/java_home
/Library/Java/JavaVirtualMachines/jdk-17.jdk/Contents/Home

$ export JAVA_HOME=/Library/Java/JavaVirtualMachines/jdk-17.jdk/Contents/Home

If we see something similar after typing the command with the version flag below we're good to go

$ java --version
openjdk 17.0.10 2021-01-19
OpenJDK Runtime Environment (build 17.0.10+9)
OpenJDK 64-Bit Server VM (build 17.0.10+9, mixed mode)

Installing Docker Engine​

Fiore has Docker-based integration tests; it also supports running template webserivce in Docker. Docker can be installed by following its official instructions

Getting Source Code​

git clone git@github.com:QubitPi/Fiore.git
cd Fiore

Syncing up with Fiore's Code Styles with IntelliJ​

For the moment, we have distilled the most important code style conventions with respect to Fiore's code as IntelliJ settings. If IntelliJ is used for IDE, we may import these code style settings by importing the Fiore-Project-intellij-code-style.xml file in the root of the repo. The setting for the project will appear as a new Scheme named "Fiore-Project" under IDE's Editor -> Code Style section.

Please also enable "remove unused imports" by Editor -> General -> Auto Import -> Optimize Imports on the Fly, which will automatically remove unused imports.

Running Tests​

The following commands runs both unit and integration tests:

tip

If tests fail with 404 or endpoint-not-working, make sure the port 8080 is not occupied. All integration tests runs against webservice running at that port.

mvn clean verify

For IT tests, we use Testcontainers instead of jcabi-mysql because the latter is hard to configure and debug and Testcontainers support more types of databases, such as mongo

Packaging​

A WAR file named fiore-1.0-SNAPSHOT.war will be generated under target directory for running in Jetty with the command below:

mvn clean package

Running Webservice in Docker​

Please make sure Docker is installed (Installing Docker), then execute the following commands:

Getting the Image​

We can obtain the image in one of the 2 approaches below:

Docker Hub​

We can pull the image from my docker hub:

docker pull jack20191124/fiore

GitHub​

We could also build the image from source:

git clone https://github.com/QubitPi/Fiore.git
cd Fiore
docker build -t jack20191124/fiore .

Please note that the jack20191124/fiore in the last command is the image name; we could replace that value with anything preferred

Standing up a Container​

When image is built, we can spin up an instance with

info

Please replace the OPENAI_API_KEY below with the actual key which can be obtained here

export OPENAI_API_KEY=...
docker run --name=fiore -it \
    -p 8080:8080 \
    -e OPENAI_API_KEY=$OPENAI_API_KEY \
    jack20191124/fiore
  • name=fiore: the container is named "fiore". We can change it accordingly.
  • -p 8080:8080: 8080 is the port where webservice will listen on. With this port forwarding, we will be able to access webservice from host machine web browser at localhost:8080

If we see the following output, it means the container is running properly and ready to accept request such as http://localhost:8080/v1/healthcheck

...

2023-10-24 05:21:46.032:INFO :oejss.DefaultSessionIdManager:main: Session workerName=node0
2023-10-24 05:21:46.977:INFO :oejsh.ContextHandler:main: Started o.e.j.w.WebAppContext@2892dae4{ROOT.war,/,file:///tmp/jetty-0_0_0_0-8080-ROOT_war-_-any-13760845903749066689/webapp/,AVAILABLE}{/jetty-base/webapps/ROOT.war}
2023-10-24 05:21:46.994:INFO :oejs.AbstractConnector:main: Started ServerConnector@5c8dfc08{HTTP/1.1, (http/1.1)}{0.0.0.0:8080}
2023-10-24 05:21:47.009:INFO :oejs.Server:main: Started Server@71d44a3{STARTING}[11.0.15,sto=5000] @2947ms

Running Webservice in Standalone Jetty​

Download Jetty​

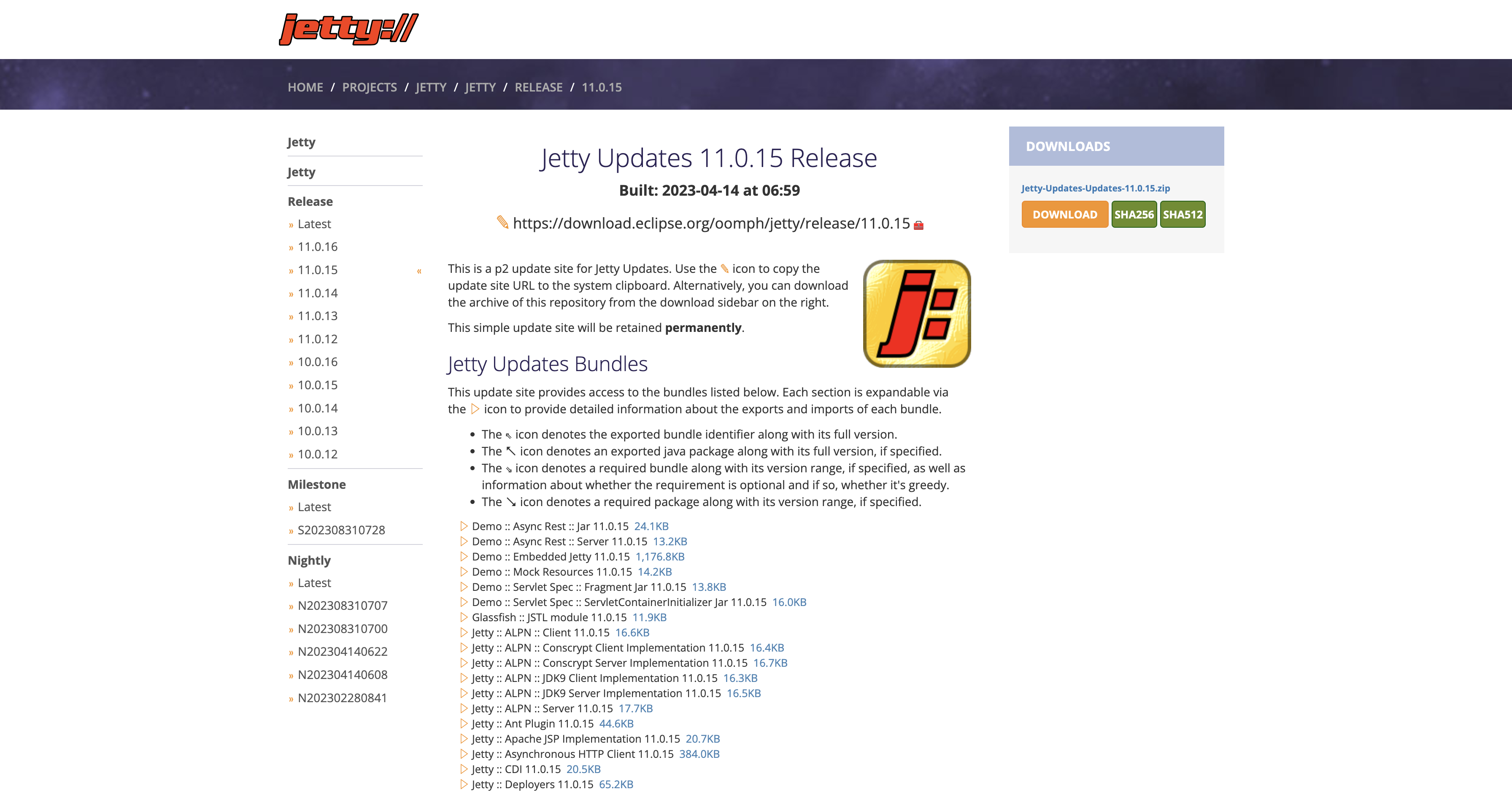

For JDK 17, which is the version Fiore runs on, it's been tested that Jetty 11.0.15 worked. Hence, we will use "11.0.15" release as an example:

Error loading download-jetty.png

Put the tar.gz file into a location of your choice as the installation path and extract the Jetty binary using

tar -xzvf jetty-home-11.0.15.tar.gz

The extracted directory jetty-home-11.0.15 is the Jetty distribution. We call this directory $JETTY_HOME, which should not be modified.

Setting Up Standalone Jetty​

Our WAR file will be dropped to a directory where Jetty can pick up and run. We call this directory $JETTY_BASE, which is usually different from the $JETTY_HOME. The $JETTY_BASE also contains container runtime configs. In short, the Standalone Jetty container will be setup with

export JETTY_HOME=/path/to/jetty-home-11.0.15
mkdir -p /path/to/jetty-base
cd /path/to/jetty-base
java -jar $JETTY_HOME/start.jar --add-module=annotations,server,http,deploy,servlet,webapp,resources,jsp

where /path/to/ is the absolute path to the directory containing the jetty-home-11.0.15 directory

The --add-module=annotations,server,http,deploy,servlet,webapp,resources,jsp is how we configure the Jetty container.

Lastly, drop the WAR file into /path/to/jetty-base/webapps directory and rename the WAR file to ROOT.war:

mv /path/to/war-file /path/to/jetty-base/webapps/ROOT.war

Running Webservice​

java -jar $JETTY_HOME/start.jar

The webservice will run on port 8080

Troubleshooting​

IntelliJ​

IntelliJ Cannot READ Resource File​

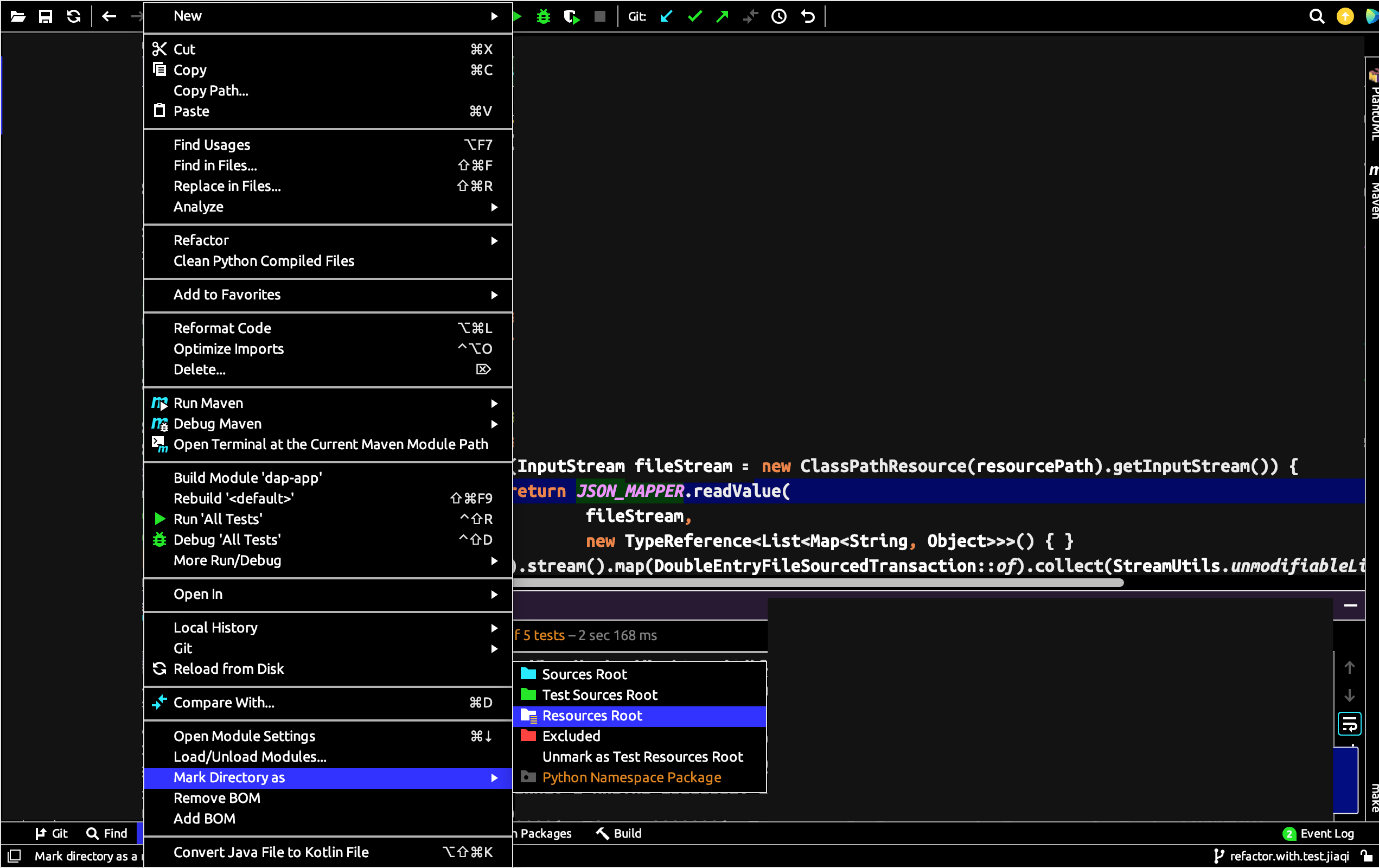

We sometimes see errors when we run unit tests in IntelliJ, saying "some resource file" cannot be found. We know the path is absolutely right. If this is the case, it's simply a IntelliJ issue which is solved by simply loading those resources explicitly by telling IntelliJ where those resources are:

Error loading intelliJ-find-resource.png

Tab Width​

We use 4-space as tab. This can be configured at Code Style -> Java -> Tabs and Indents with the following settings:

  • Tab size: 4
  • Indent: 4
  • Continuation indent: 8

If tabs still come out at 2 spaces when hitting TAB or Enter, not 4 spaces, try:

  1. "Settings | Editor | Code Style" -- try disabling "Detect and use existing file indents for editing" in case if you have it enabled (it is by default). NOTE: re-opening file in editor may be required.
  2. Do you have any .editorconfig files anywhere in the path of that file? Settings from .editorconfig ("Settings | Editor | Code Style") have priority (will overwrite) over your IDE settings.
